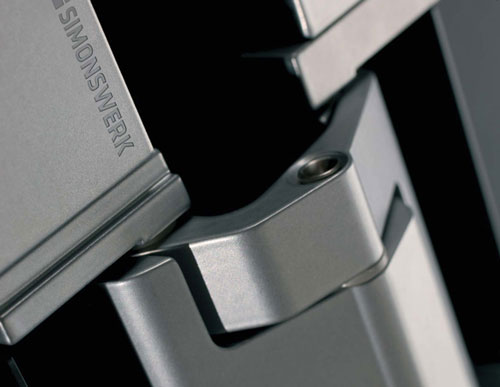

Simonswerk TECTUS ® By Trend Building

Clean design, highload capacity, secure assembly and multifaceted scope of application for high quality residential and commercial doors.

  • Made in Germany
  • Easy to install and maintain
  • Applicable for wood, steel, and aluminum frames
  • 3-dimensional adjustability

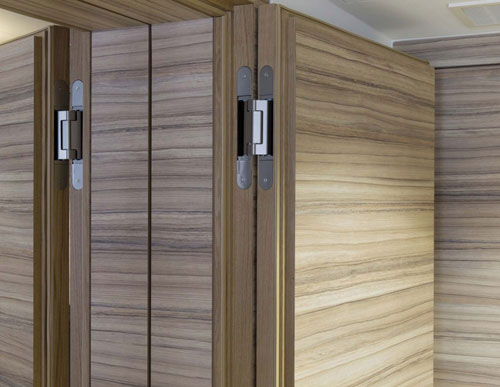

  • Used for high-quality interior doors and functional heavy-duty doors
  • Minimalist design
  • Color coordinated hinge

Simonswerk Tectus Product Details

TE 340 3D
For flush residential and commercial doors

Hinge
Technical data Load capacity Length (door/frame) Width (door/frame) Router bit diameter
up to 80 kg (176lbs)
80 kg (176 Ibs)
160/160 mm (6.299/6.299 “) 28/28 mm (1.102/1.102″) 24 mm (0.945”)

TE 640 3D
For flush high performance commercial doors

Hinge Technical data Load capacity Length (door/frame) Width (door/frame) Router bit diameter up to 200 kg (440 Ibs) 200 kg (440 Ibs) 240/240 mm (9.449/9.449 “) 32/32 mm (1.260/1.260 “) 24 mm (0.945 “)

TE 540 3D
For flush commercial doors

Hinge
Technical data
Load capacity
Length (door/frame)
Width (door/frame)
Router bit diameter
up to 120 kg (264 Ibs)
120 kg (264 Ibs)
200/200 mm (7.874/7.874 “)
32/32 mm (1.260/1.260 “)
I24 mm (0.945 “)

Download your Simonswerk Tectus Brochure

Discover more features and specifications of our Top Quality Simonswerk Tectus Concealed Door Hinges.
