GEZE Door Systems and Safety Technology, by Trend Building
Innovative system for doors and safety technology
GEZE’s comprehensive range of Manual Sliding Door Systems provides maintenance free sliding door gear for the effortless operation of sliding door. Top quality sliding fittings plow doors to open quickly, smoothly and silently.
GEZE door closers are perfect examples of attractive design and functionality.
Versatility and reliability
The integrated Boxer door closer is installed completely in the door leaf and frame. The guide rail can only be seen when the door is open. The door closer can be used for right and left single action doors without any need for conversion.
Unlimited Opportunities
Combining elegant design aesthetics with cutting edge technology to produce world leading automatic entrance systems. The automatic door system from GEZE open up an almost unlimited range of door design opportunities.
GEZE SLIDING DOOR SYSTEM

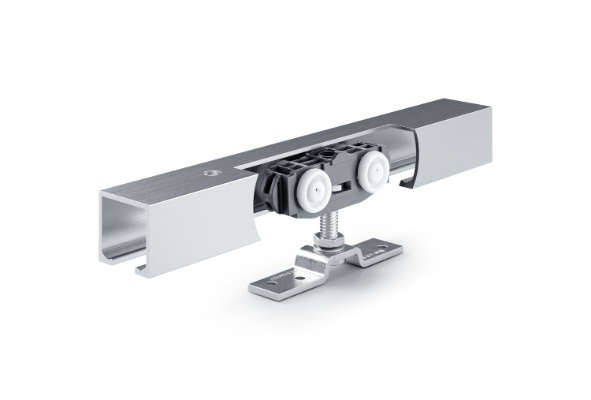

Rollan 40 N / Rollan 80
GEZE’s comprehensive range of Manual Sliding Door Systems provides maintenance-free sliding door gear for the effortless operation of sliding doors. Top-quality sliding fittings allow doors to be opened quickly, smoothly, and silently.
The sliding door uses a silent roller-guided system for simple and effective sliding.
GEZE Rollan
GEZE INTEGRATED CONCEALED DOOR CLOSER
Integrated door closer for single leaf doors
- Closing force with variable adjustment of EN2-4 or EN3-6
- Can be used for right and left-hand doors without conversion
- Door closer is embedded in the door leaf and frame and fulfills the highest design standards
- Integrated back check, slows down doors that are thrown open forcefully
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
All functions can be adjusted after installation
Boxer 1-leaf
Product features
| Closing force in accordance with EN 1154 Leaf width recommended up Leaf weight recommended up |
2 – 4 1100 MM 130 KG 40 MM |
Boxer 2-4 Closer
Product features
| Closing force in accordance with EN 1154 Leaf width recommended up Leaf weight recommended up |
3 – 6 1400 MM 180 KG 50 MM |
Boxer 3-6 Closer
GEZE FLOOR SPRING
GEZE TS 500 N EN3
Floor springs for 1-leaf single and double action doors up to 1100 mm leaf width. Application rangeTS 500 N EN3
- For internal right and left closing
single-action doors - For internal double-action doors
- For leaf width up to 950 mm
- For leaf weights up to 100 kg
GEZE TS 500 NV
Application range TS 500 NV
- For right and left-hand closing
single-action doors - For internal double-action doors
- For leaf width up to 1100 mm
- For leaf weights up to 150 kg
GEZE TS 550 NV
Floor springs for 1-leaf single and double action doors up to 1400 mm leaf width. Application range TS 550 NV
- For highly frequented doors
- For right and left hand closing
single-action doors - For double-action doors
- For leaf width up to 1400 mm
- For leaf weights up to 300 kg
TS 500 N EN3 / TS 500 NV
